Our FANTASTIC 2025 Summer Interns (and Mentors)! FRONT ROW Left to Right: Maxwell Wright, Dubarrie Fagout, Aubrey Underwood, Larisa Sandoval, Ryan Nair, Mandy Lam, Richard Scalettar, Ryan Larson, Riley McCullough, Aaron Swartzlander, Cesario St. John Del Valle BACK ROW Left to Right: Anais Castillo, Brielle Amadi, Torrance Yelverton, Nehemiah Wamala, Mariam Imran, Jeigh Smith-Castillo, Heri Kitenza, Isaac Fontaine, Tyler Joy

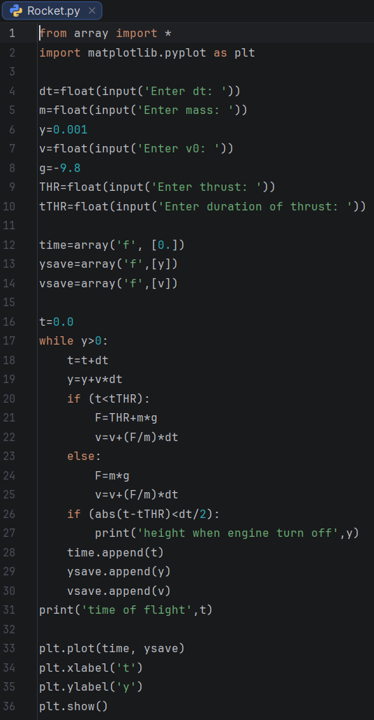

Our students come from River City High School in West Sacramento. Our instructors coming soonWhat we do- Part 1:We learn to code in python! This program computes the trajectory of our rockets. It is the final version which includes

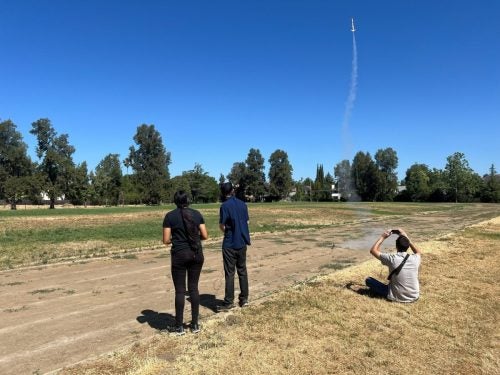

the variation of mass as the rocket engine burns and also the effects of air resistance!!We build Estes rockets and we test our code against real data!!! The python code works really well!!!What we do- Part 2:We build and fly rockets. This involves learning constuction techniques, basic principles of rocket engines, etc.
We then compare to codes which compute trajectories.Some launch videos (from 2023 program):
Astrocam launch
Phantom launch
Patriot launch
Andrea’s model
Another Astrocam
Yet Another AstrocamWhat we do- Part 3
We build and fly drones. This involves learning some electronics, computer interfacing, how to solder, mechanical construction, etc.What we do- Part 4:
Learning to Code in Python: We start with a code for oscillatory motion.What we do- Part 5:
Other Activities: Liquid Nitrogen, UC Davis Labs# THIS IS NEEDED TO USE ARRAYS IN PYTHON:
from array import *
# THIS IS NEEDED TO MAKE PLOTS IN PYTHON:
import matplotlib.pyplot as plt
# INPUTS
dt=float(input(‘Enter dt: ‘))
m0 =float(input(‘Enter starting mass: ‘))
y =0.001
ymax=0.
v =float(input(‘Enter v0: ‘))
g = -9.8
THR =float(input(‘Enter thrust: ‘))
tTHR =float(input(‘Enter duration of thrust: ‘))
pm =float(input(‘Enter propellant mass : ‘))
b =float(input(‘Enter air resistance: ‘))
# START OFF TIME, POSITION, VELOCITY ARRAYS
time =array(‘f’, [0.])
ysave=array(‘f’,[y])
vsave=array(‘f’,[v])
# DO THE MD AND APPEND EACH NEW TIME,
POSITION, AND VELOCITY TO ITS ARRAY
t=0.0
while y > 0:
t=t+dt
y=y+v*dt
if (y > ymax):
ymax=y
if (t < tTHR):
m=m0-pm*t/tTHR
F=THR+m*g-b*v
v=v+(F/m)*dt
else:
m=m0-pm
F=m*g-b*v
v=v+(F/m)*dt
if (abs(t-tTHR)<=dt/2):
print(‘height when engines turn off’,y)
time.append(t)
ysave.append(y)
vsave.append(v)
print(‘time of flight’,t)
print(‘apogee ‘,ymax)
plt.plot(time, ysave)
plt.xlabel(‘t’)
plt.ylabel(‘y’)
plt.show()
Athena Rocket Data comparison
with two engine typesAStrocam and Phantom Blue
Rocket Data comparisonPatriot Rocket Data comparisonAthena Rocket Data comparison
Now including air resistanceThe Teams and

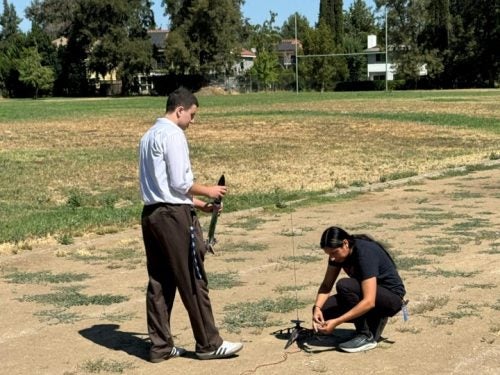

all their data.Rocket ConstructionGetting ready to Launch RocketsGetting ready to Launch RocketsDrone Construction
Attaching the motorRotors must be carefully balanced!Dale leads drone constructionNavigating the obstacle course.Learning molecular dymanicsWriting the codeEven the drones need codeHelium Recovery SystemLiquid Nitrogen ExperimentsMore Liquid Nitrogen ExperimentsProf. Taufour’s Lab
